Schematic Master Plan Central Utility Plant Plan View

Vinci SketchBuild™ | Central Utility Plant | Plan View

Vinci LLC’s unique SketchBuild™ service takes the“boxes” on the RFP-supplied master or schematic plans and turns them into something that you can use to demonstrate you can build your prospective clients’ dreams. This can prove the difference between your audience thinking “these guys get it” and “who’s up next?” Yes, we could have just shown the audience a couple boxes in plan…

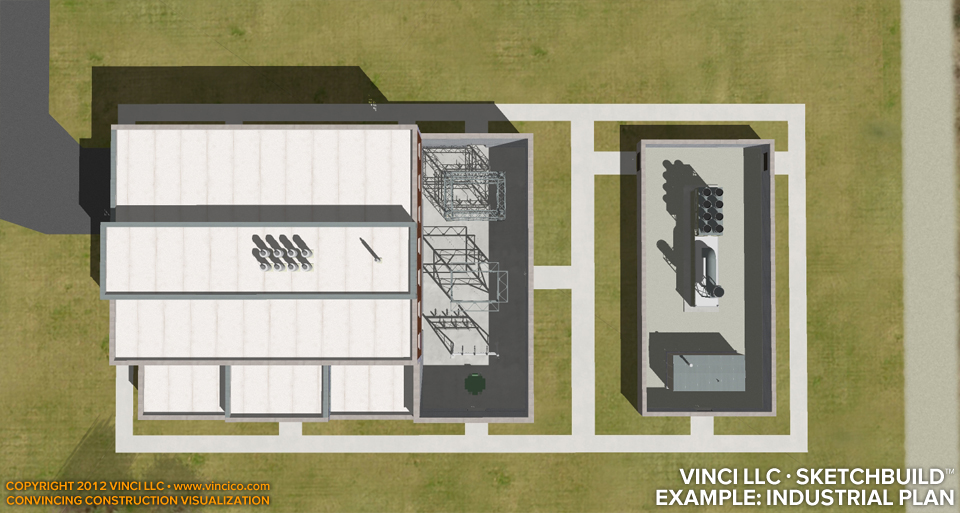

The building layout is derived from the University master plan document. The plant will be extended to the left, and includes an electrical yard and landfill gas generator at right. The structure and enclosure of this concept was produced in two days. See elevations, a section, and ancillary structures, or visit the Research Tower.
